Stila Functional Grandstand

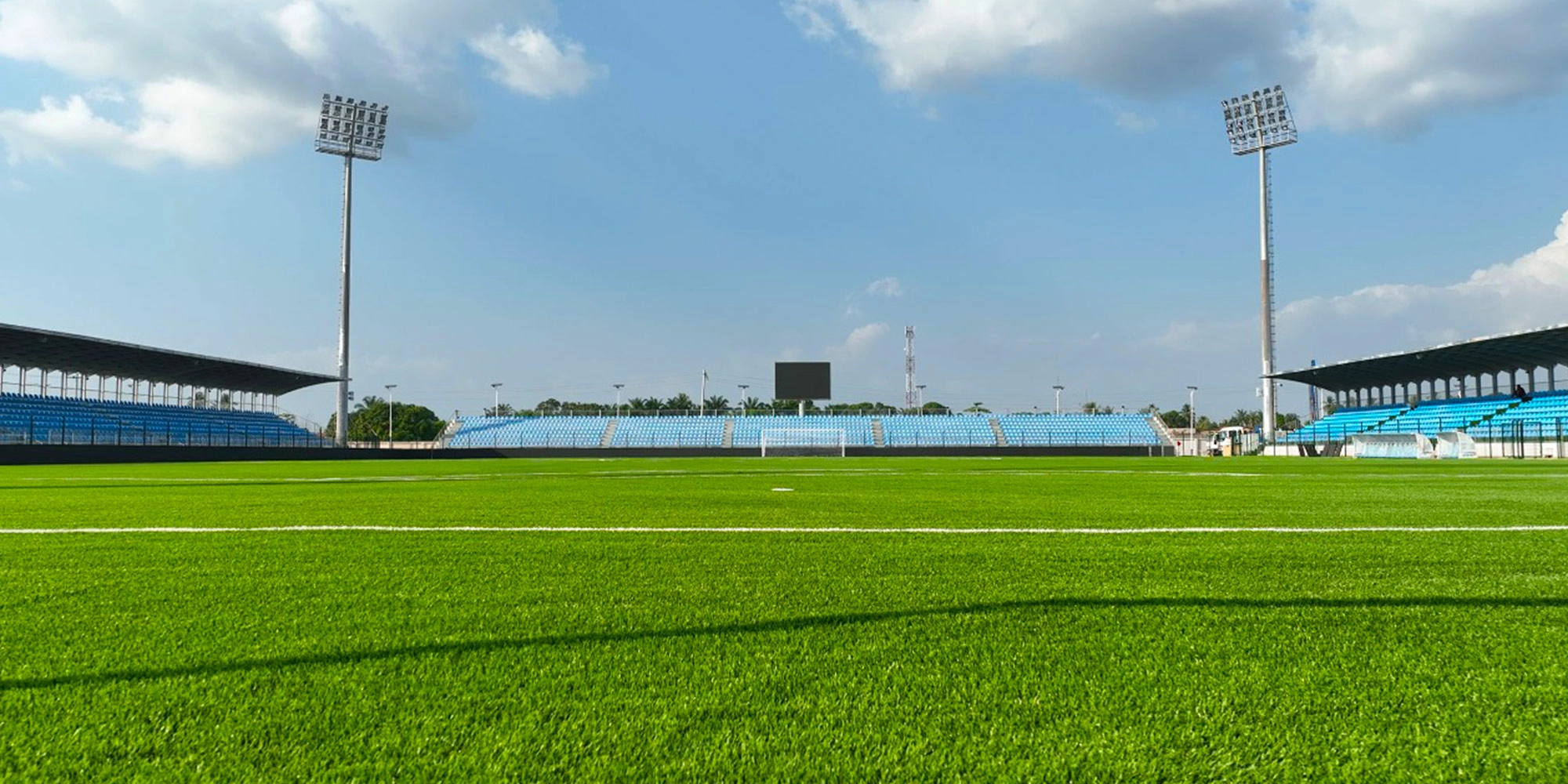

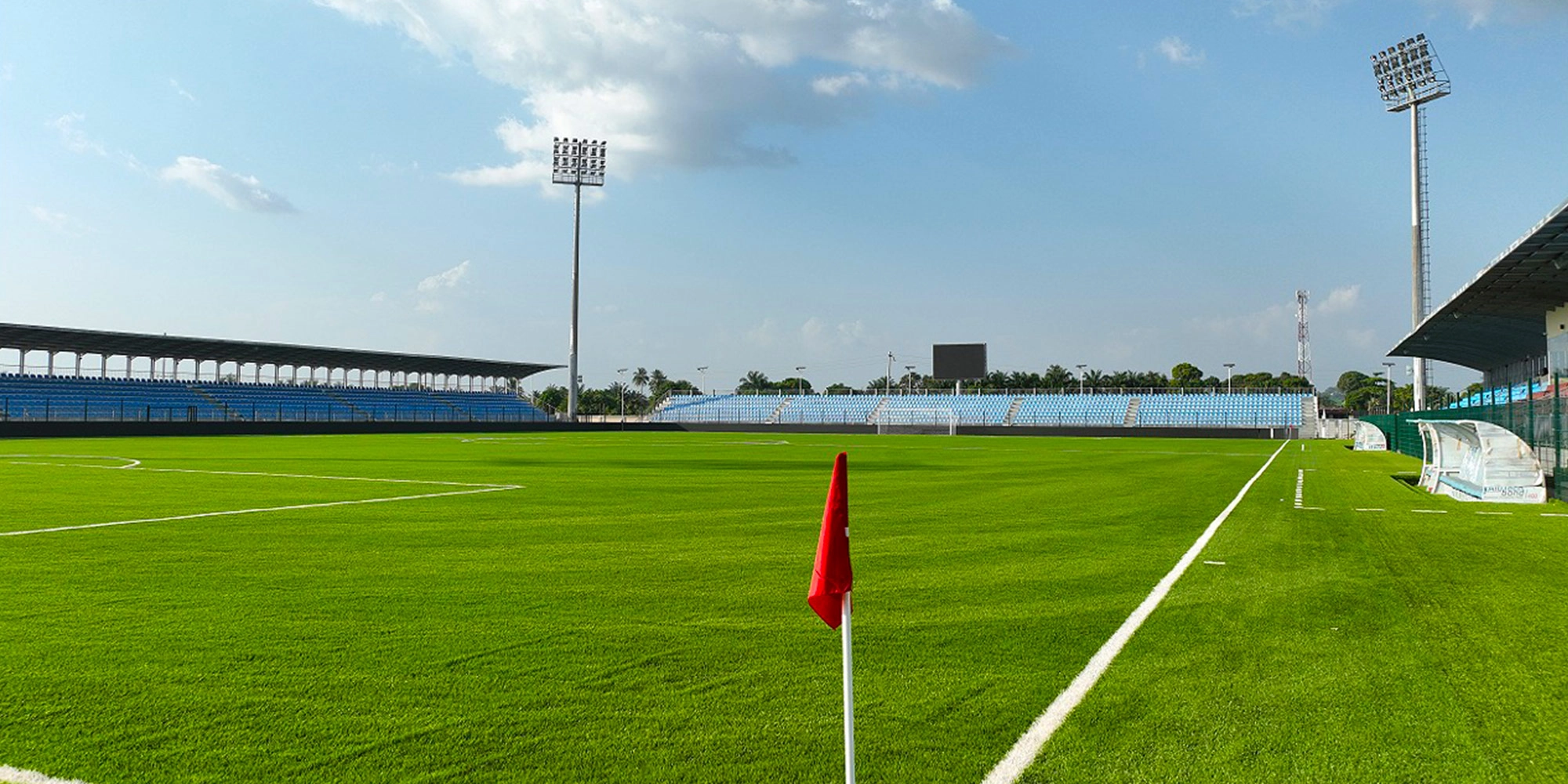

Usage Areas: Stadiums, sports halls, swimming pools, and turf fields

System Definition: Modular system spectator stands made of steel construction.

Features: Due to being made of steel construction, it has a high load capacity. The advantage of being a modular system allows for easy disassembly and relocation to a different place. It creates living spaces through containers.

Galvanized Steel
Easy Maintenance
Wind Resistance
Snow Resistance
Long Lasting
stila-functional-grandstand Stila Functional Grandstand Stila Functional Grandstand

Experience the Stila’s difference.

Customer Focused
Spectator Capacity Capacities can be selected between 200 and 2,000 people.
Number of Rows 12 rows
Dimensions Length: 12 m - 128 m Width: 7,50 m - 11,10 m Height: 5,10 m - 6,90 m
Reinforced Concrete Beam Width: 30 cm Height: 50 cm
Infrastructure Concrete (15 cm)
Wind Speed 144 km/hour
Wind Load 100 kg/m2
Moving Spectator Load 500kg/m2
Stadium Seat Seat with Backrest - Backless Seat
Container Container interior furnishing is offered as an option. It can be arranged as a changing room, toilet & shower, office, or living space.
Steel Construction The preference may be for a hot-dip galvanized modular screw system or an oil-painted modular screw system.
Surface Coatings Diamond-patterned galvanized sheet is used in the upper surface coatings of the grandstand. A specially bent galvanized sheet is used in the backrest areas of the grandstand to resist flexing.
Exterior Surface Coatings Trapezoidal sheet or fiberboard cladding can be applied.
