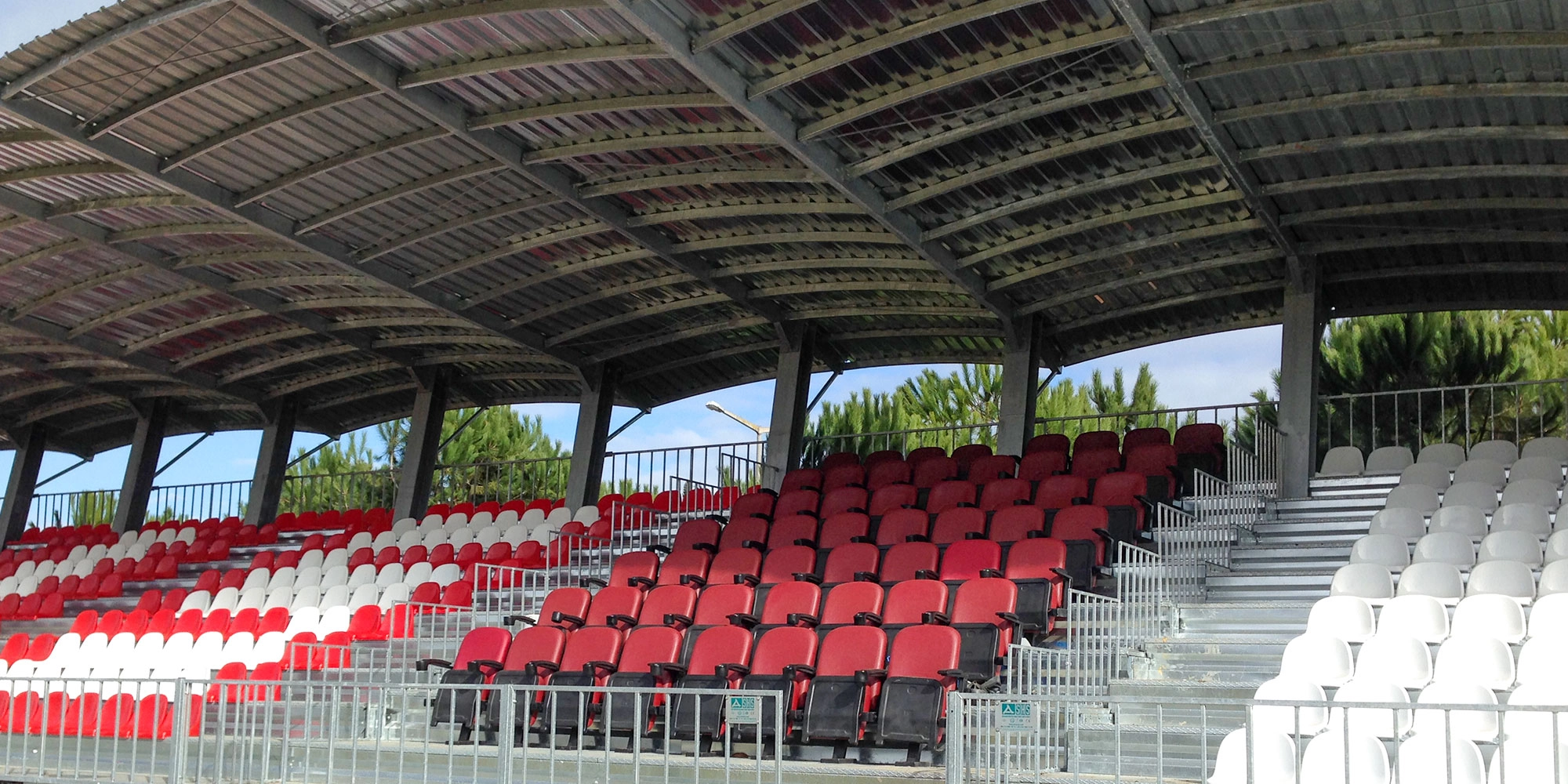

Stila Dynamic Roofed Grandstand

Usage Areas: Stadiums, sports halls, swimming pools, and turf fields

System Definition: Modular system spectator stands made of steel construction

Features: Due to being made of steel construction, it has a high load capacity. The advantage of being a modular system allows it to be easily disassembled and installed in a different location.

Galvanized Steel
Snow Resistance
Moveability
Durability
Fast Installation
Safety
stila-dynamic-roofed stila-dynamic-roofed stila-dynamic-roofed

Experience the Stila’s difference.

Quality
Innovation
Perfectionism
Customer Focused
Sustainability
TECHNICAL INFORMATION
Spectator Capacity Capacities can be selected between 100 and 2,000 people.
Number of Rows 3 - 8 rows
Dimensions Length: 6 m - 120 m Width: 2,40 m - 7,30 m Height: 2,00 m - 4,50 m
Reinforced Concrete Beam Width: 30 cm Height: 50 cm
Infrastructure Concrete (15 cm)
Wind Speed 100 km/hour
Wind Load 50 kg/m2
Moving Spectator Load 300kg/m2
Snow Load  100 kg/m2
Stadium Seat Seat with Backrest - Backless Seat
Steel Construction The preference may be for a hot-dip galvanized modular screw system or an oil-painted modular screw system.
Surface Coatings Diamond-patterned galvanized sheet is used in the upper surface coatings of the grandstand. A specially bent galvanized sheet is used in the backrest areas of the grandstand to resist flexing.
Roof Coating Galvanized trapezoidal sheet is used.
Exterior Surface Coatings The exterior surface coatings are optionally offered. It is possible to apply cladding with trapezoidal sheet or fiberboard.
